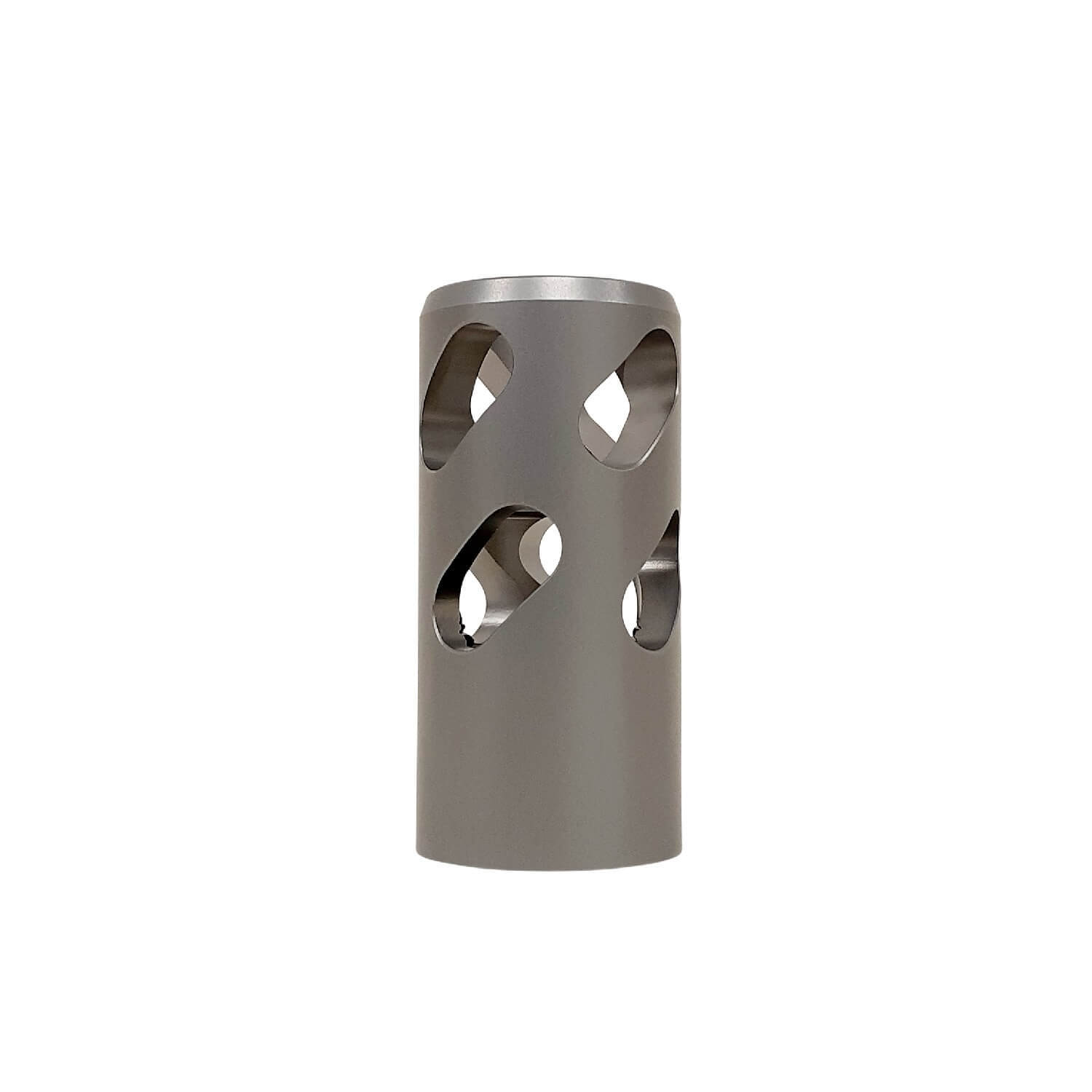

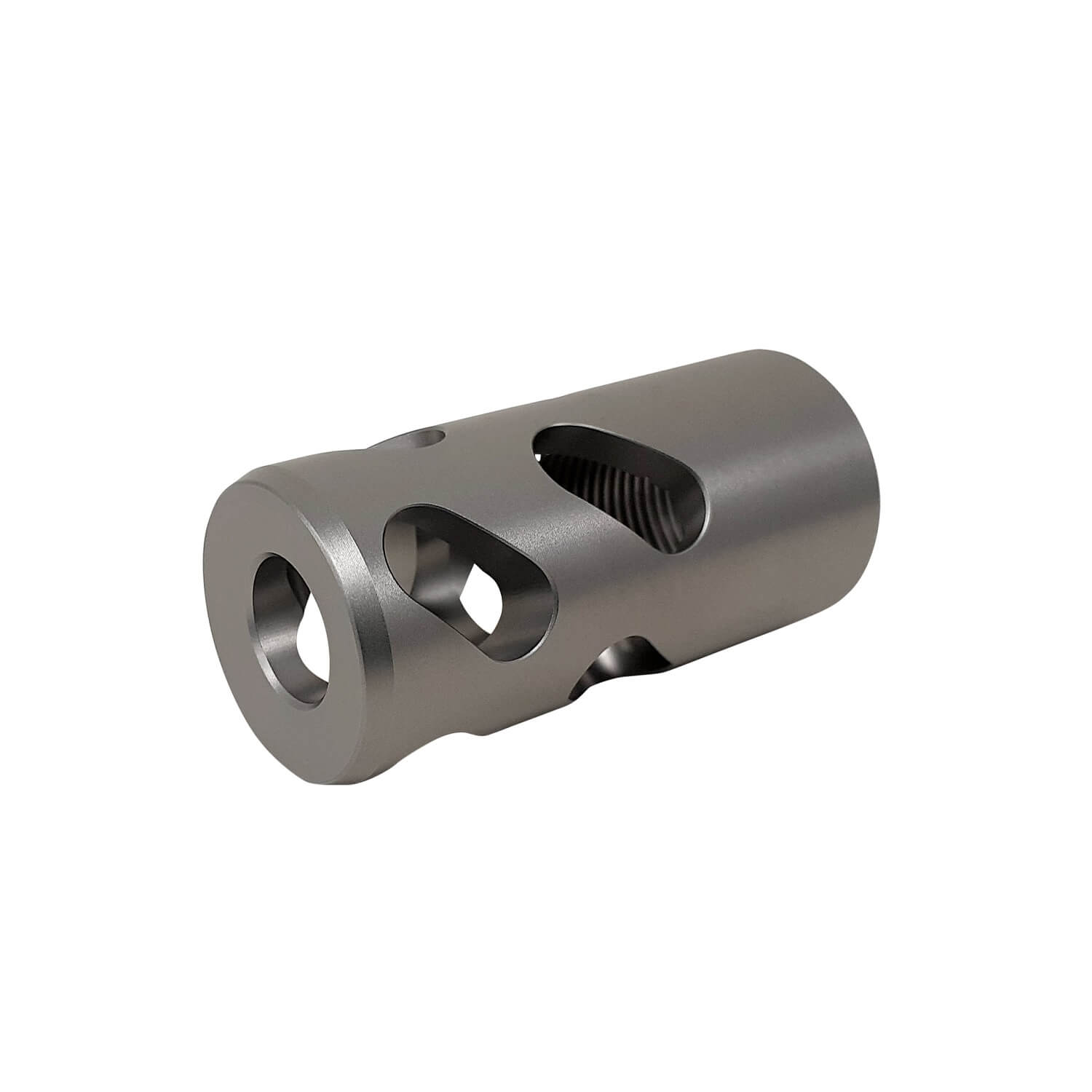

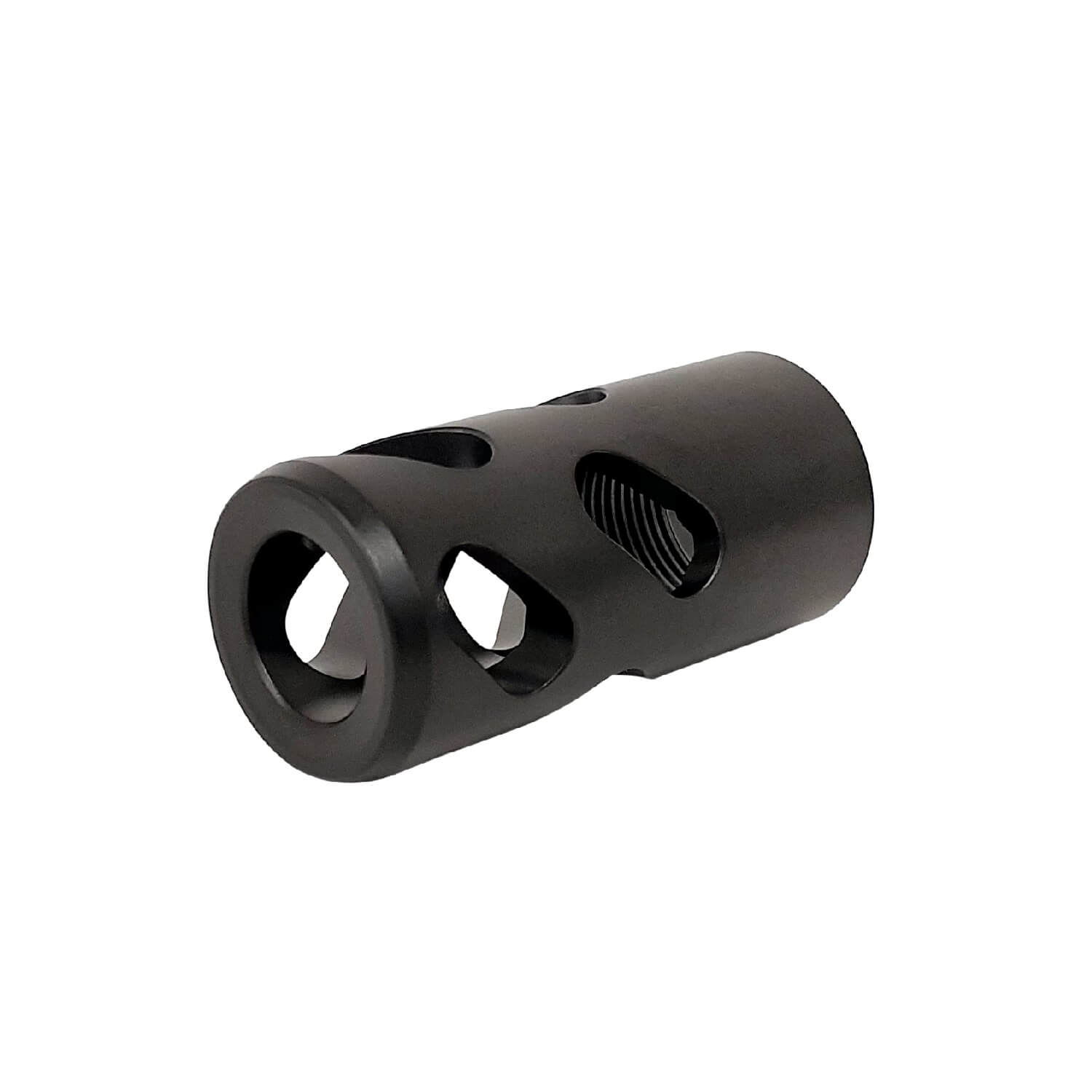

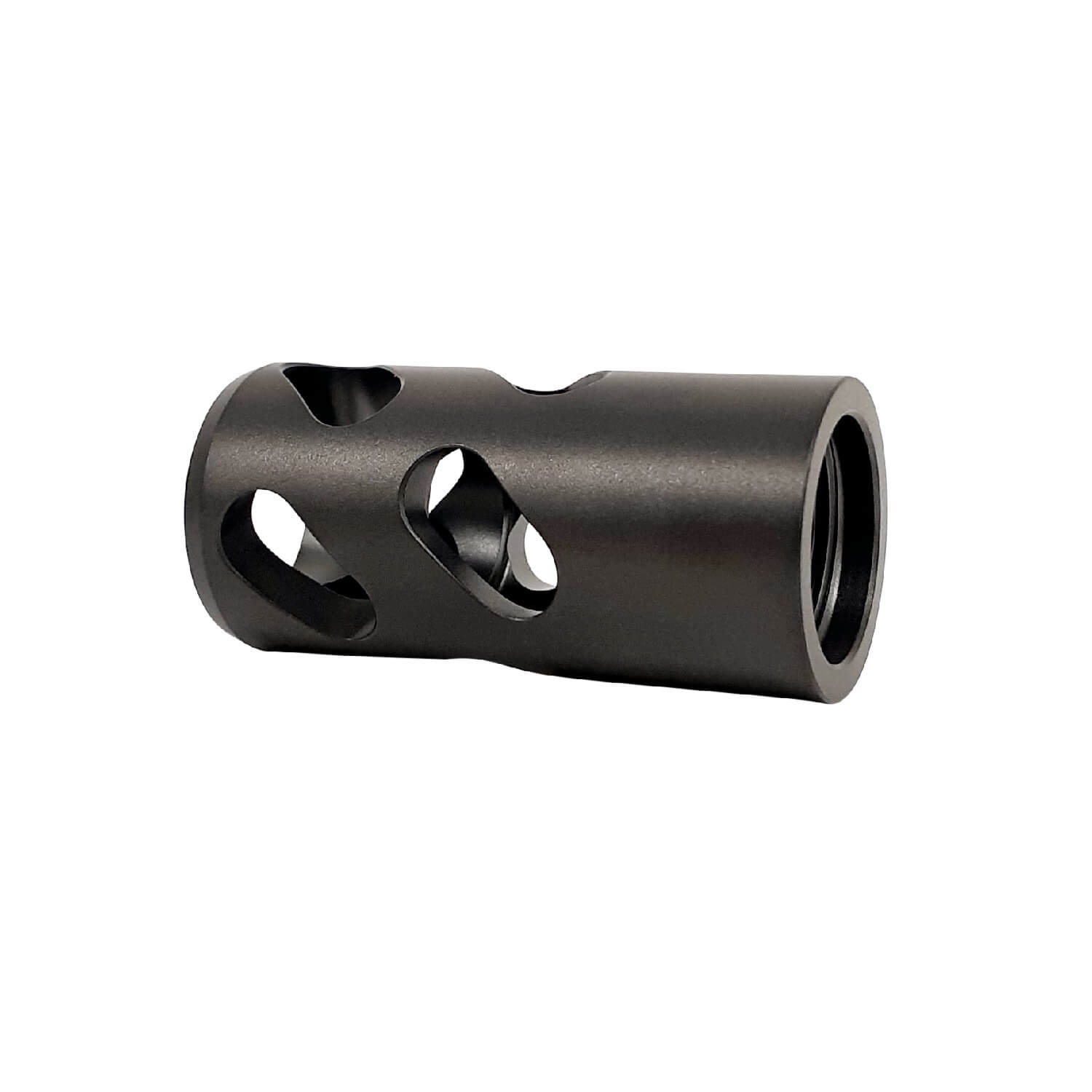

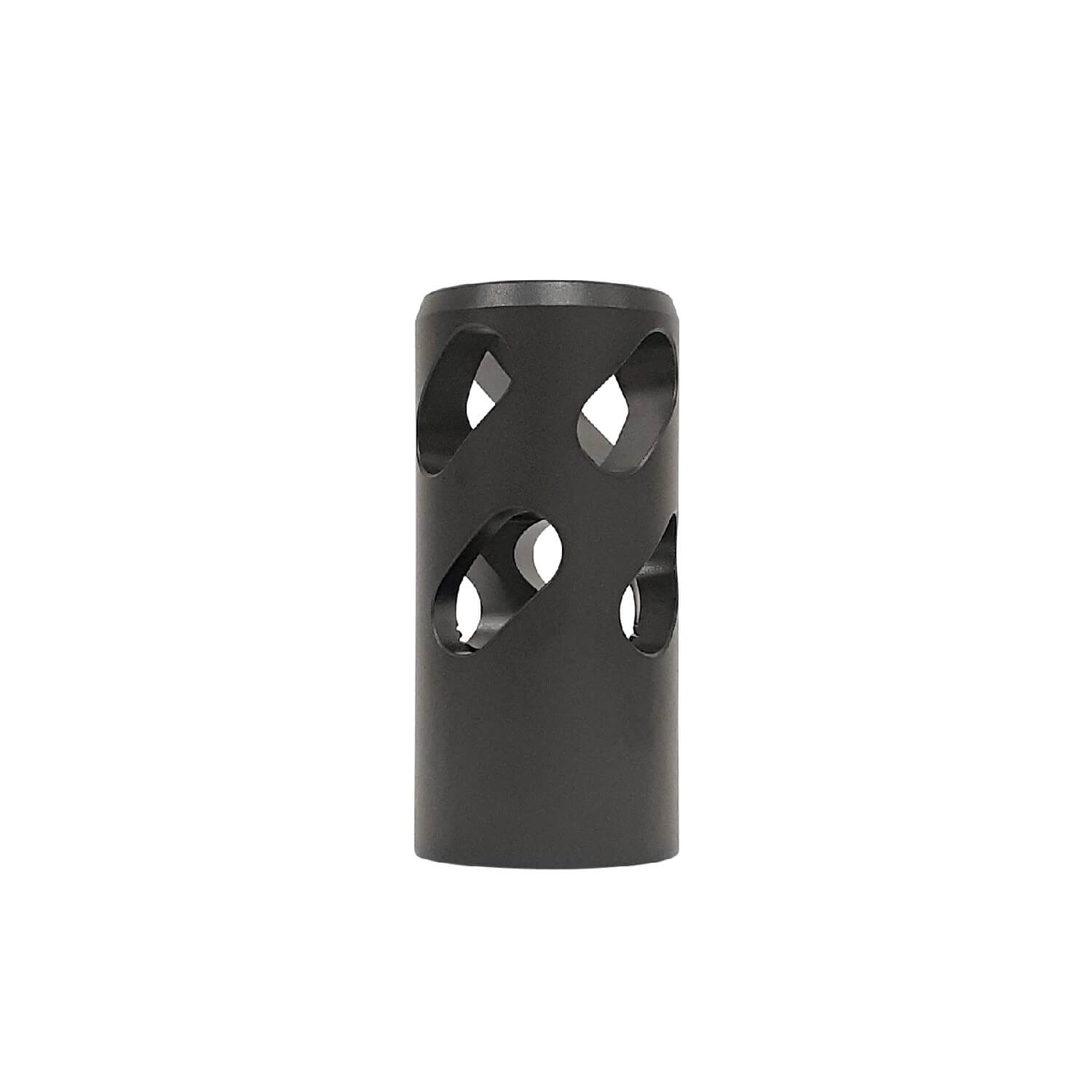

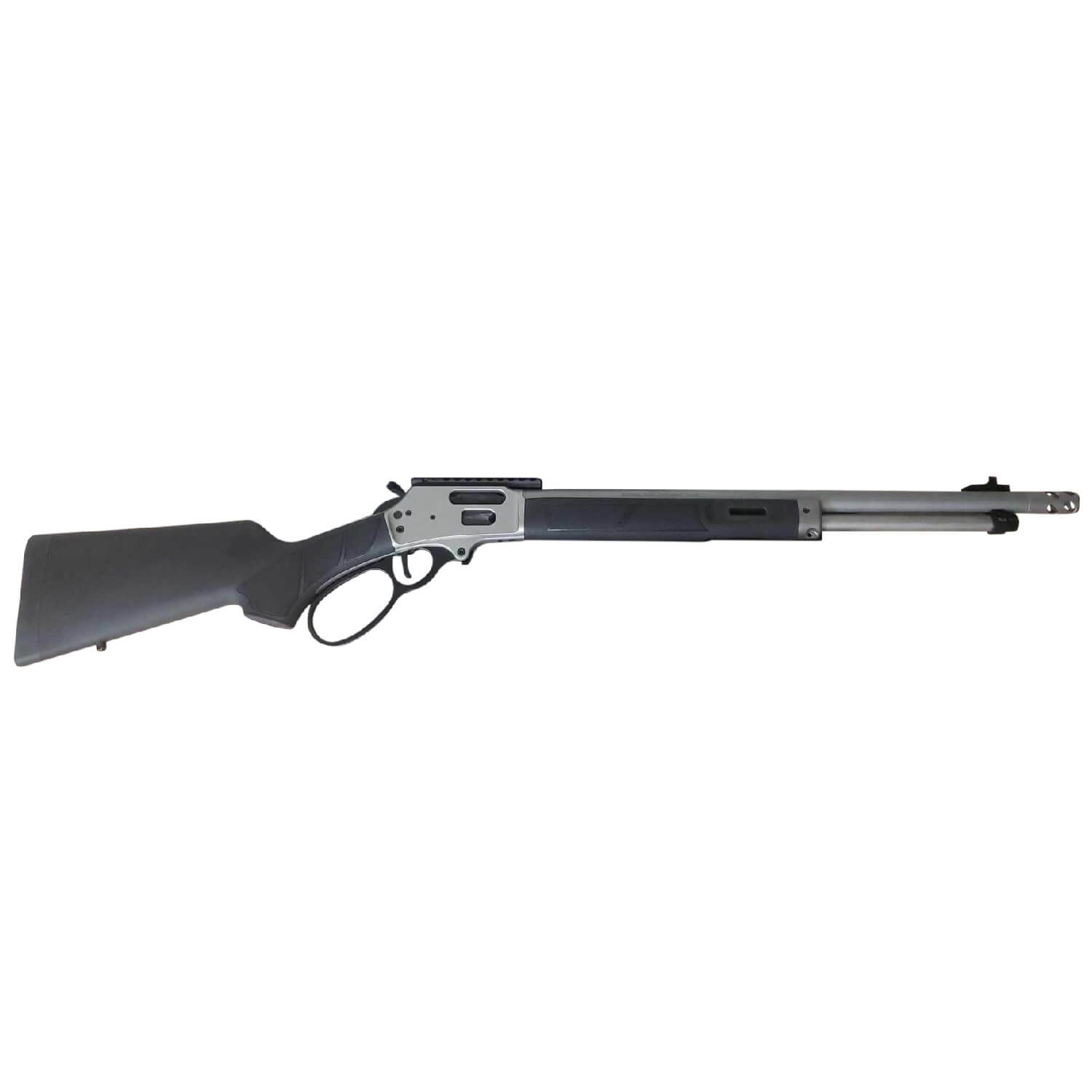

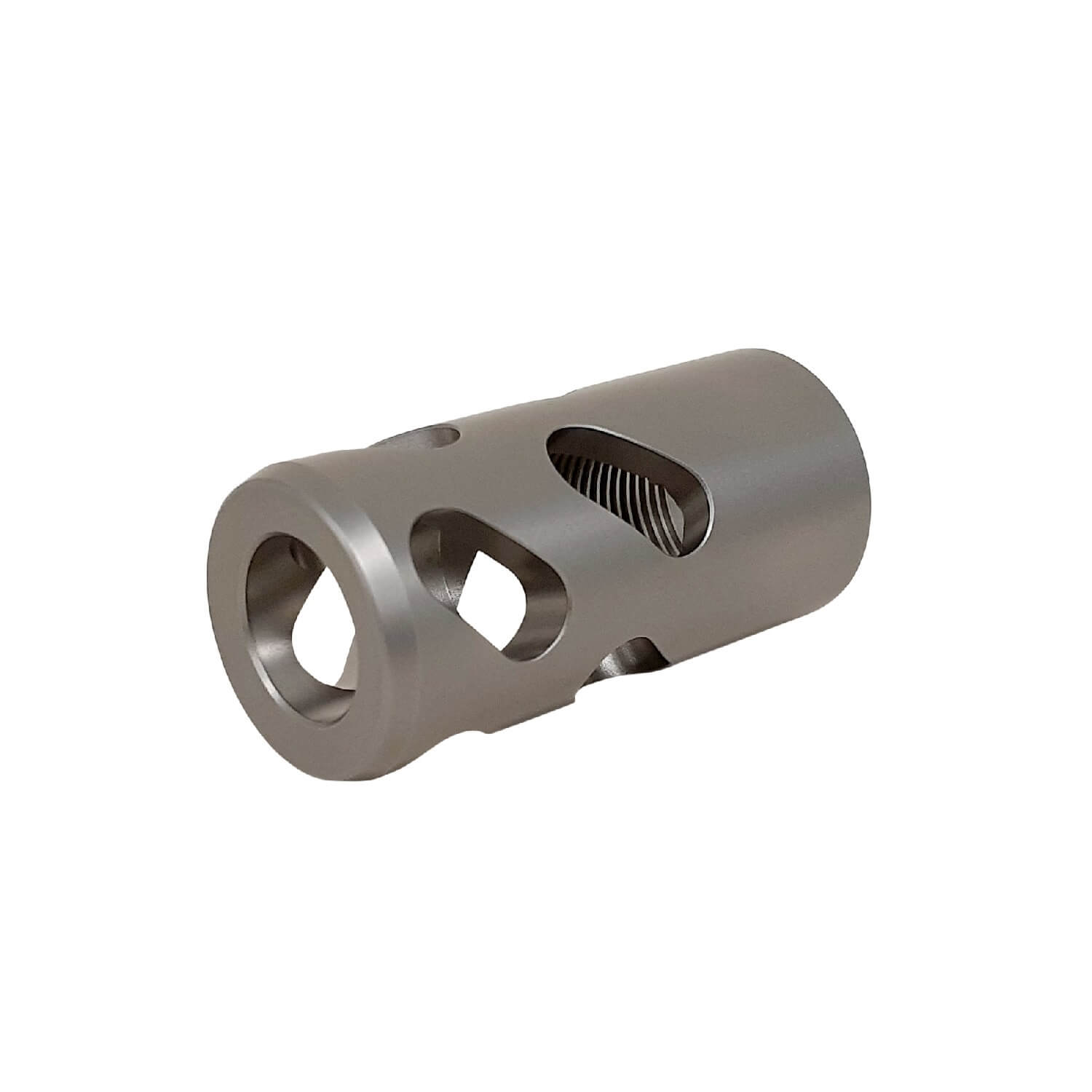

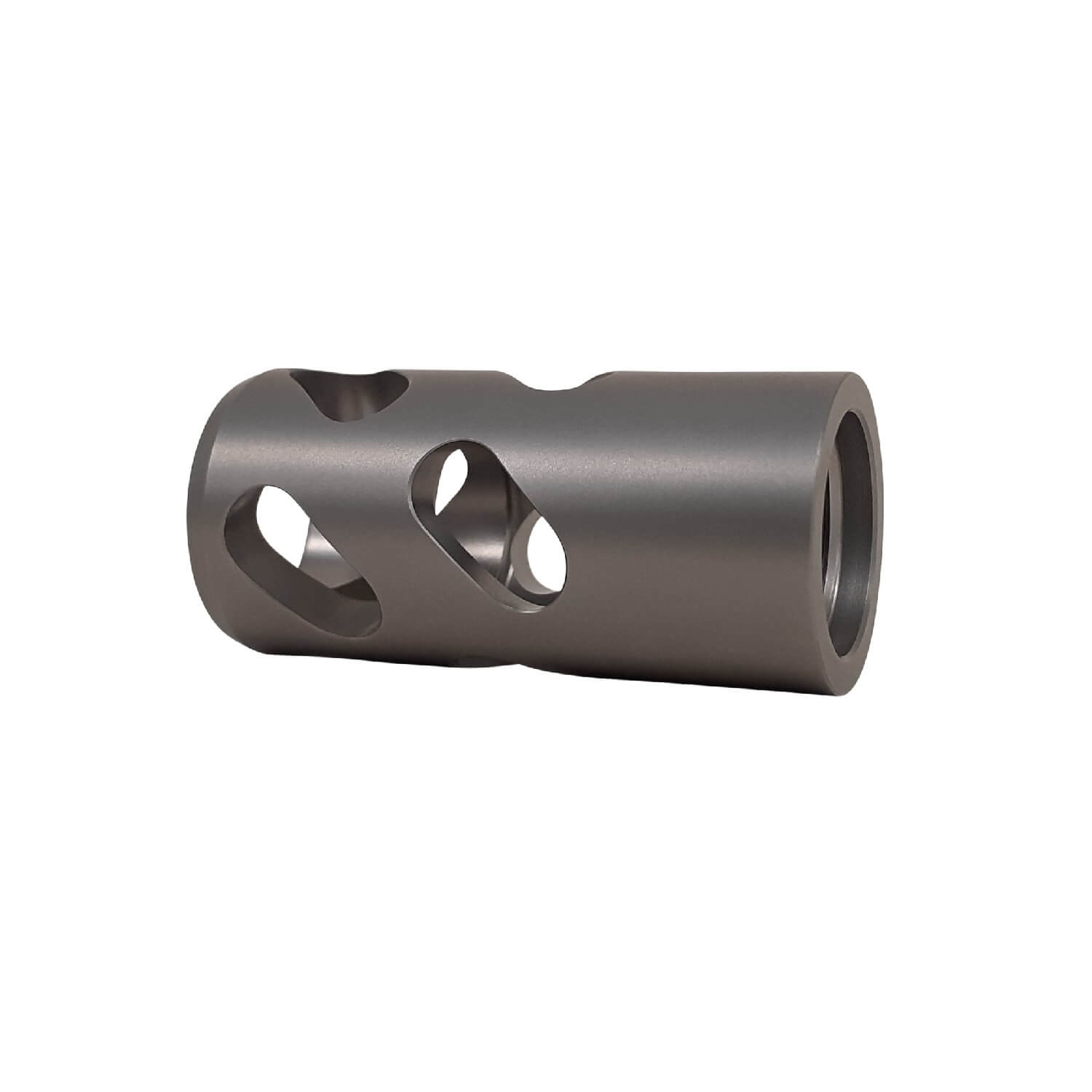

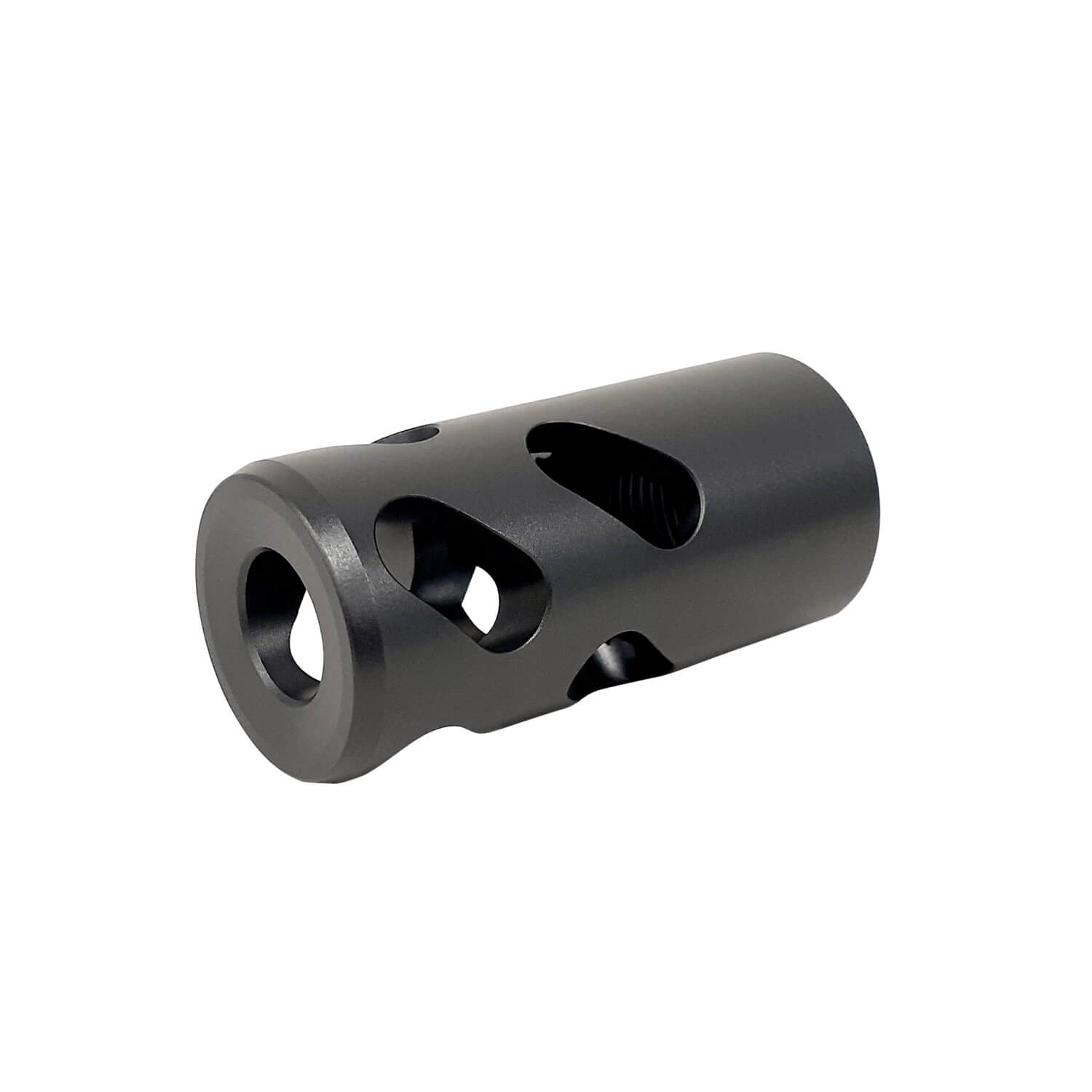

Designed for your Smith & Wesson S&W 1854, stealth hunter, traditional walnut lever action rifles in 30-30 Winchester / 357 Magnum / 360 Buckhammer / 44 Magnum / 45 Colt / 45-70. Greatly reduces recoil while keeping a sleek low profile.Â
Proprietary true 2 baffle design. 90 degree radial ports intersect to create expansion chambers and forms true baffles for maximum recoil reduction with no concussion. Really stops the “Thump”. Not your average 30-30 Win / .357 Mag / 360 BHMR / .44 Mag / .45 Colt / 45-70 Govt radial muzzle brake.

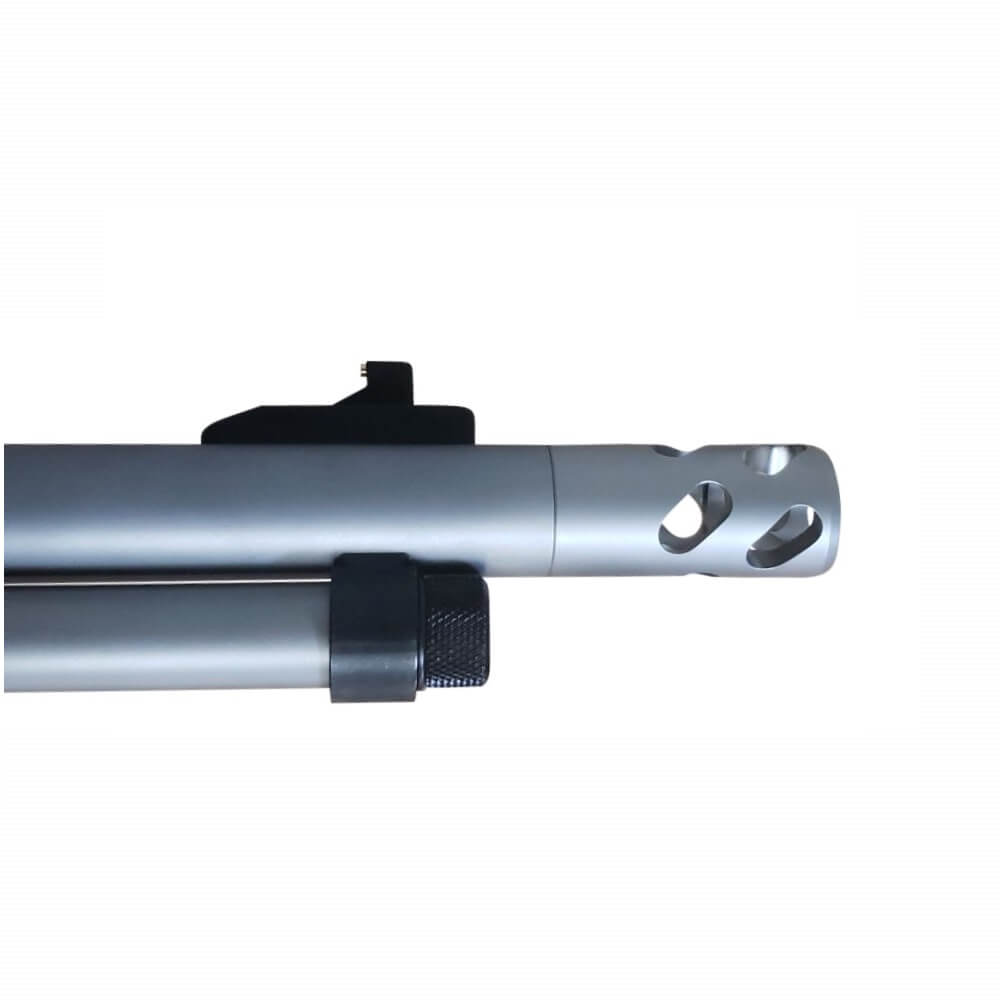

.840″ in diameter. Only adds 1.125″ forward of your barrel muzzle. (Back chamfered to closely match)
Installs easily without strap wrenches, a tensioning key is included to ensure solid lockup.
Precision machined for exceptional fit and finish.
Your satisfaction is our utmost priority, therefore we offer an unconditional 30 day money back guarantee. For any reason you are not satisfied, please contact us and we will arrange a full refund, no questions asked.
Give yourself the edge in hunting you deserve, get your Spearhead Smith & Wesson S&W 1854 muzzle brake today.
30-30 Winchester /357 Magnum / 360 buckhammer choose 5/8-24 threads
44 Magnum / 45 Colt / 45-70 Govt choose 11/16-24
Specifications
Diameter: .840″
Length: 1.750″
Weight: 50g / 1.764oz
Material: 17-4 PH stainless steel for exceptional corrosion resistance and strength.
Muzzle Brake installation instructions.
Ensure firearm is completely unloaded prior to installation.
Ensure the muzzle brake bore matches or exceeds your caliber of use.
Remove factory thread protector/muzzle device.
Remove factory O-Ring on muzzle threads if present.
Install muzzle brake and hand tighten with tensioning key. Use key on ports closer to crown of muzzle brake.
Remove tensioning key from muzzle brake after tightening.
Technical specs can be found HERE.
Robert Goldman (verified owner) –
What a quality piece of workmanship. It matched my Model 1854 Stainless perfectly. If there was ever a recoil on my rifle there wasn’t anymore. Even the concussion seemed non existent. It also added that perfect amount of flair to the end of the barrel. Thank you for such a fine muzzle brake from our Canadian Brothers.
spearheadmachine –
Hello Robert
Thank you for the great feedback. We are very glad to hear the muzzle brake reduced recoil for you and makes the rifle aesthetically pleasing.
We appreciate you making us a part of your shooting excellence. Cheers.
Ross Chevalier –
I cannot imagine why any owner of this fine rifle would NOT purchase this brake. I got mine through Tactical Ordnance in the satin finish and it matches up with the barrel perfectly. My rifle is in the 45-70 Government caliber and even the 300 grain rounds have a fair bit of recoil. The brake DEFINITELY makes a difference. For me, it changes the number of rounds I can shoot in a sequence and I did not need to change the factory pad on the stock. The 45-70 still kicks like a mule, but is much more pleasant to shoot with the brake installed.
Another superb product from the fine people at Spearhead Machine. Why would you get a brake anywhere else? All of mine from these folks are perfect.
